Forms of supply - According to Norma ISO 544

Plastic spool S 300

Plastic spool S 300
External Ø d1 300 ± 5 mm
I.D. Arbor Hole Ø d3 52 mm
Outside Width b 103 +0/-3 mm
Capacity (Kg) 7

BS 300 Basket spool

Plastic spool BS 300
External Ø d1 300 ± 5 mm
Internal Ø d2 189 ± 0,5 mm
I.D. Arbor Hole Ø d3 52 mm
Outside Width b 103 +0/-3 mm
Capacity (kg) 7

Plastic spool S 200

Plastic spool S 200
External Ø d1 200 ± 3 mm
I.D. Arbor Hole Ø d3 52 mm
Outside Width b 55 +0/-3 mm
Capacity (Kg) 2

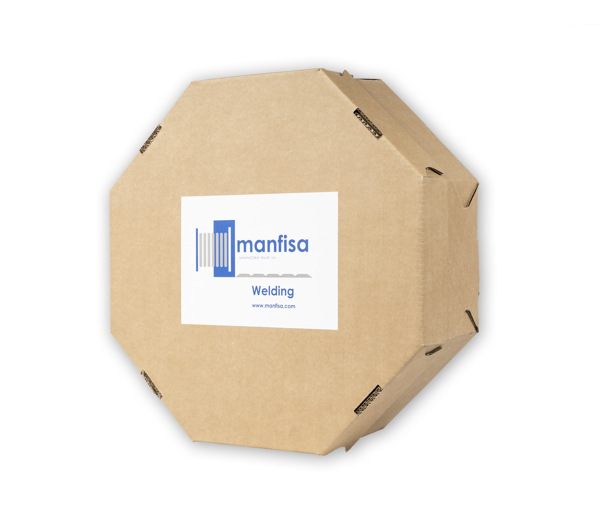

Octavin

Octavin
Width 580 mm
Height h 210 mm/420 mm
Capacity (Kg) 25/50

Drums

Drums
External Ø d1 520 mm / 550 mm / 650 mm
height h 745 mm/ 920 mm / 905 mm
Capacity (Kg) 80/150

Plastic spool K 355

Basket spool K 335
External Ø d1 350 ± 1,5 mm
I.D. Arbor Hole Ø d3 35 ± 1,5 mm
Outside Width b 200 mm
Capacity (Kg) 18

Gran cubo

Basket spool K 335
I.D. Arbor Hole Ø   580 mm
Height h   900 mm
Capacity (Kg) 140
